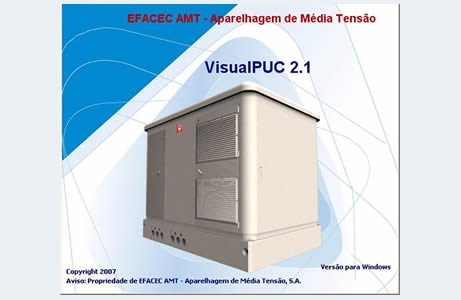

VisualPUC

Software for Medium Voltage compact substation design.

VisualPUC 2.1 download
(Windows NT/2000/XP ou Superior)

(Requires registration)

NOTE: Before installing this new version it is recommended that you uninstall previous version.

For complementary information,
.


VisualPUC it's a tool to help the compact substation project achievement.

In VisualPUC the user is able to configure the electrical diagram by simply drag and drop.

From simple inputs, VisualPUC will generate, according with actual standards, the following reports:

  • Technical Specification

  • Justificative Calculations

  • Drawings
